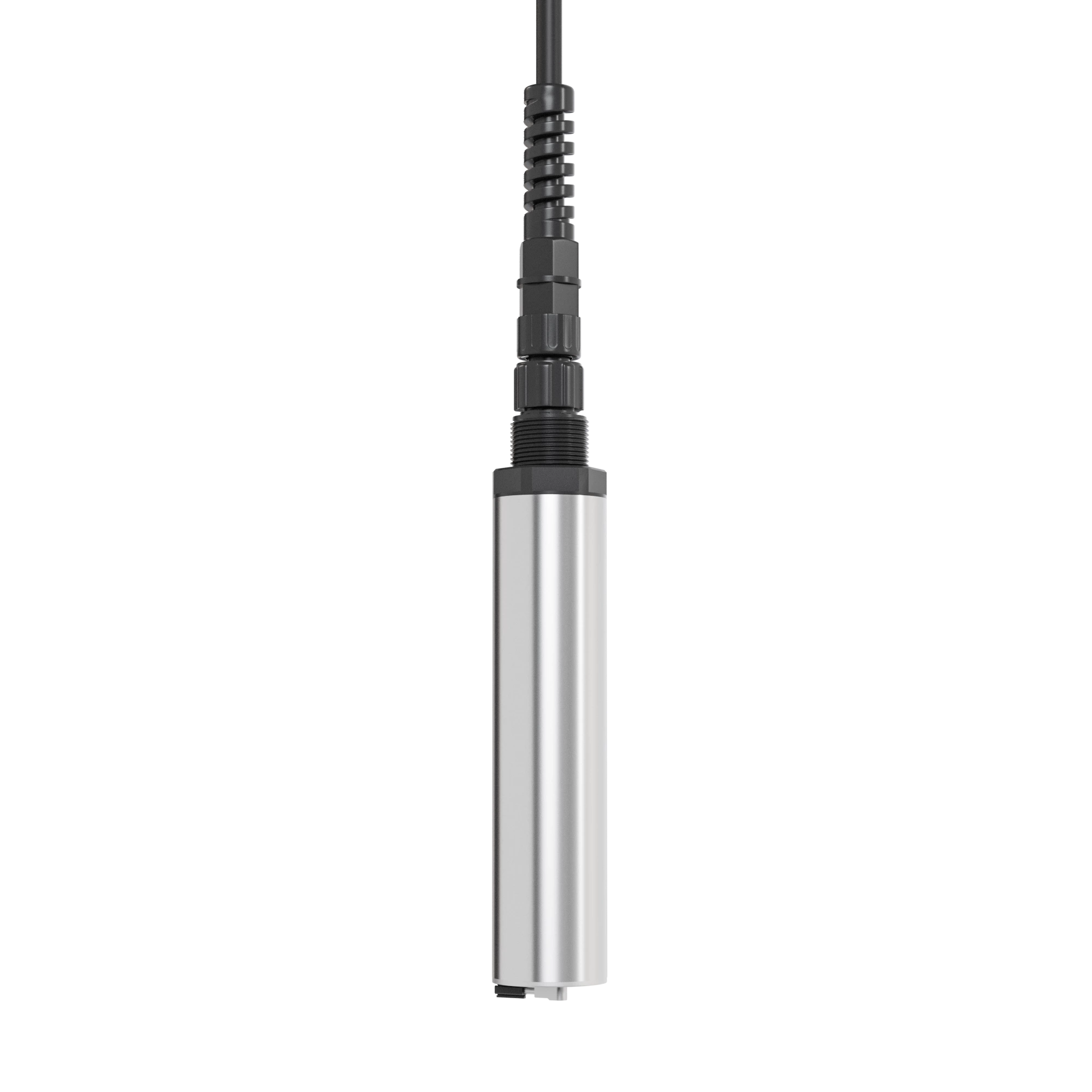

ADT3300 Suspended solids/ TSS/ MLSS meter

General Information

Suspended Solids (Sludge Concentration/ TSS/ MLSS) meter Model ADT3300 Main materials lower casing: Aluminum with powder covering cover: PA66+GF25+FR Waterproof rate IP65 Sto

Characteristics

Range: 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/L

Resolution: Less than ± 5% of the measured value

Pressure range: ≤0.4MPa

Power supply: AC220V±10%; 50Hz/60Hz

SPECIFICATION

Product

Suspended Solids (Sludge Concentration/ TSS/ MLSS) meter

Model

ADT3300

Main materials

lower casing: Aluminum with powder covering
cover: PA66+GF25+FR

Waterproof rate

IP65

Storage temperature

-20~70℃

Operation Temperature

-15~60℃

Output

three-way analog output 4-20mA, response parameters and corresponding scope can be programmed Note: the maximum load is 500 ohms

Relay

three-way relay can be set up, and response parameters and response values can be programmed

Display

128 * 64 dot matrix LCD with LED backlight

Digital Communication

MODBUS RS485 communication function, which can transmit real-time measurements

Power Supply

AC：85-500V, 50/60HZ, 5W
DC:9-36V

Size

145125162mm LWH

Weight

1.35 KG
