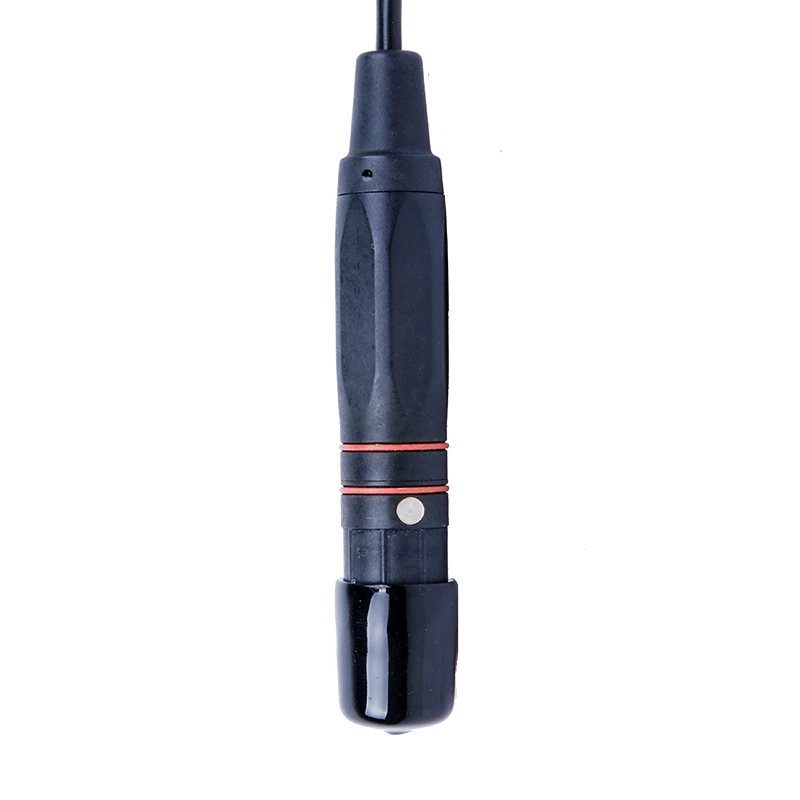

DO7013 Electrochemical dissolved oxygen sensor

General Information

DO7013 Electrochemical dissolved oxygen sensor is widely used in Aquaculture, water quality testing, informational data collection, IoT water quality testing etc.

Characteristics

Range: 0-20mg/L

Resolution: 0.01mg/L

Output signal: RS485

Communication protocol: MODBUS-RTU

REQUEST A QUOTE
CONTACT US

SPECIFICATION

Measurement
DO value in water
Measure range
0~40.00mg/l
Resolution
0.01mg/l
Temperature range
-20~60°C
Type of sensor
Galvanic Cell sensor
Measuring accuracy
<0.5mg/l
Output mode
RS485 port*1
Communication protocol
Compatible with standard MODBUS-RTU protocol
Communication mode
RS485 9600,8,1,N (by default)
ID
1~255 Default ID 01 (0x01)
Fixing method
RS485 remote setting calibration and parameters
Power supply mode
12VDC
Power consumption
30 mA @12VDC
