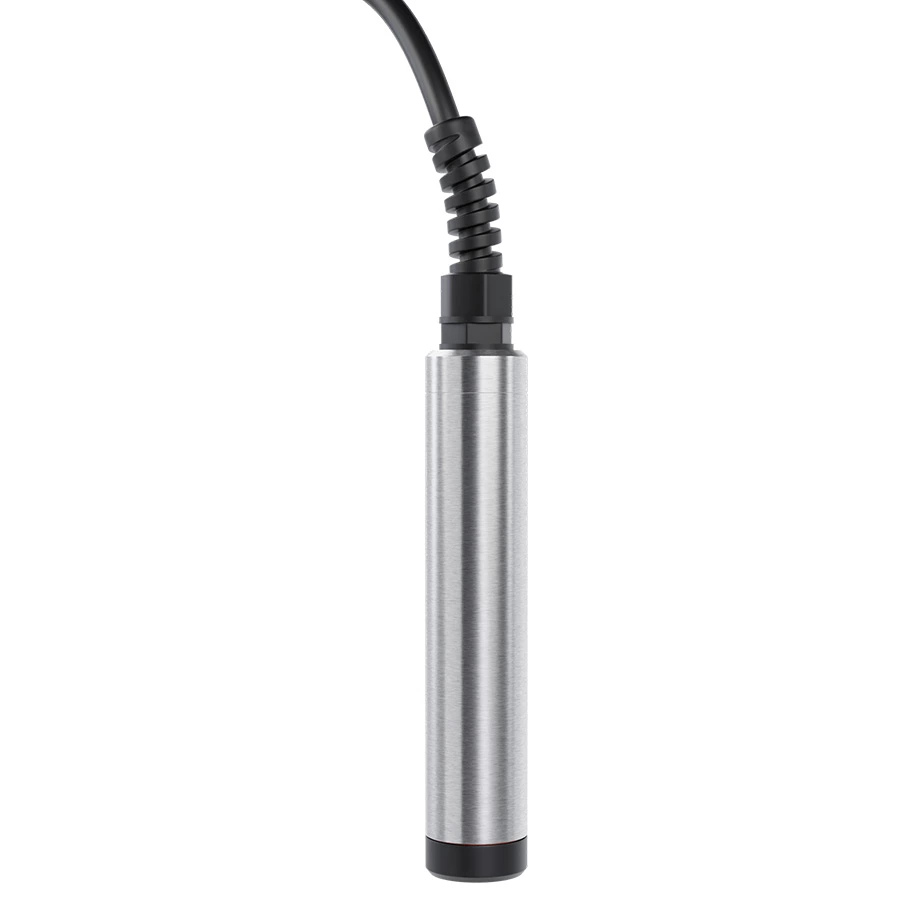

DO7017 Optical dissolved oxygen sensor

General Information

DO7017 Optical dissolved oxygen sensor is widely used in DO on-line monitoring of various technological processes such as regulating pools, biochemical ponds, and effluent in sewage treatment plants; DO on-line monitoring in waterworks, surface water, water in various industrial production processes, aquaculture and other industries.

Characteristics

Range: 0.00 to 20.00 mg/L

Accuracy:3%

Resolution: 0.01

Signal interface: Modbus RS-485

SPECIFICATION

Product

Dissolved oxygen sensor

Model

DO7017

Measure range

Dissolved oxygen: (0~20) mg/L or 0~200% saturation
Temperature: (0~45)℃

Accuracy

Dissolved oxygen: measured value ±3% or ±0.3mg/L
Temperature: ±0.5℃

Resolution

0.01

Power supply

(10-25) VDC

Operating temperature

0°C to 45°C (unfrozen)

Stocking temperature

-15°C to + 60°C

Signal interface

Modbus RS-485

Repeatability

12 VDC

Ingress protection

IP68/NEMA6P

Material

Stainless steel 316L

Maximum pressure

0.1 MPa

Cable

10m (standard),100m(optional)
