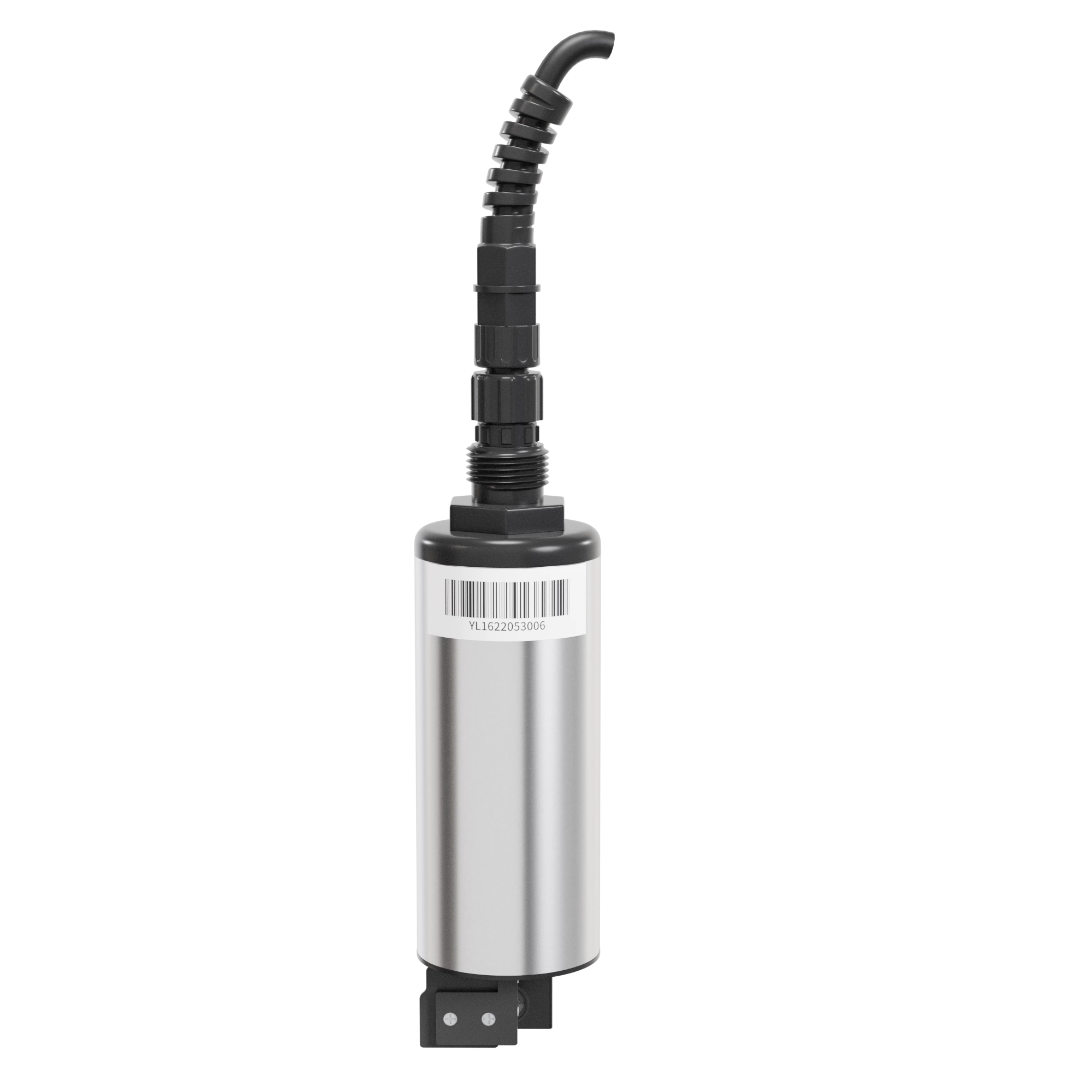

ADU3100 Turbidity meter

General Information

ADU3100 Turbidity Analyzer based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with.

Characteristics

Range: 0.01-100 NTU 、0.01－4000 NTU

Resolution: Less than ± 2% of the measured value

Pressure range: ≤0.4MPa

Power supply: AC220V±10%; 50Hz/60Hz

SPECIFICATION

Product

Turbidity meter

Model

ADU3100

Display

128 * 64 dot matrix LCD with LED backlight,
which can be operated under the direct sunlight

Power supply

AC:85~500V, 50Hz/60Hz; DC: 9~36VDC

Output

Three-way analog output 4-20mA,
Note: the maximum load is 500 ohms

Relay

Three-way relay can be set up

Digital communication

MODBUS RS485 communication function,
which can transmit real-time measurements

Warranty period

1 year

Material of outside shell

Lower casing: Aluminum with powder covering
cover: PA66+GF25+FR

Storage temperature

-20~70℃

Operation temperature

-15~60℃

Ingress protection

IP65/NEMA4X

Size

145125162mm LWH

Weight

1.35KG
