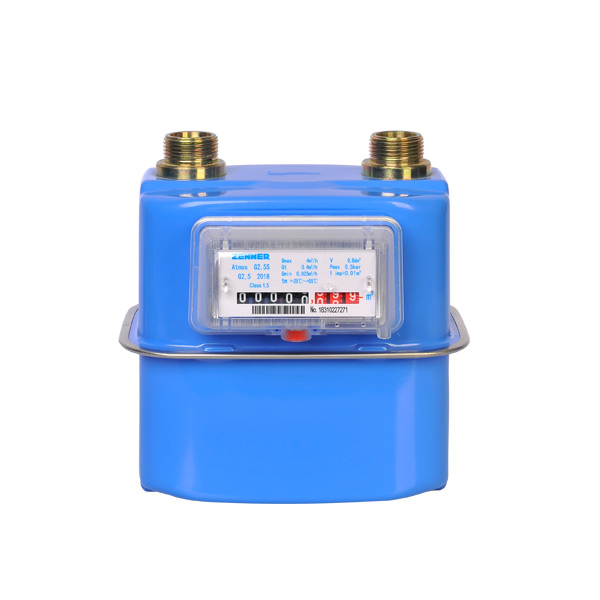

Compact type gas meter

General Information

Solid build quality, high accuracy, safety and a series of advanced techni- cal details make the diaphragm gas meter a high-grade measu- ring instrument.

The Diaphragm gas meter is available in sizes G1.6 and G2.5. The meter is characterized by precise measurements, a constant measuring stability, a long life and high reliability. Thanks to the use of high-grade materials, the diaphragm gas meter is resistant to corrosion.

The gas meter is suitable for various gas media. The integrated calibration system coordinates the movement of the valves in relation to the optimum gas flow. The excellent linearity of the error curve is guaranteed even at low flow rates. Due to the optimum rotating characteristics of the valves the Qmin value remains stable and the gas meter is resistant to contamination.

Performance characteristics

Approved in accordance with MID by NMi
Integrated system to adjust the error curve
0.8 dm³ cyclic volume, suitable for the demand of G1.6 and G2.5
Long-term accurate measurement
Galvanized steel powder-coated housing for maximum corrosion resistance
Fire resistant (HTB) up to 0.1 bar according to EN1359
Working temperature range: -25 °C to +55 °C
Anti-corrosion performance
Starting flow ≤ 1 dm3/h
Retrofittable with pulser

Product options

Measuring Principle

Diaphragm Gas Meters

Housing Material

Galvanized steel sheet

Nominal Flow Q3 (≈ Qn)

Communication Technologies

Reed Pulser

Max. Operating Pressure (bar)

0,5
