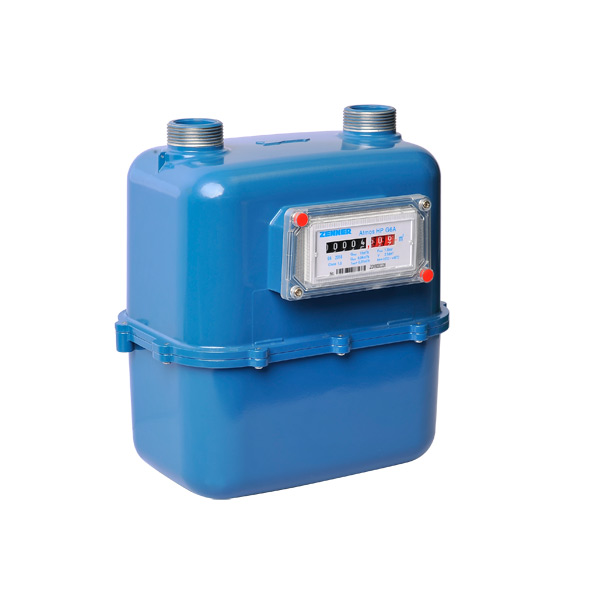

HP - diaphragm gas meter

General Information

The Diaphragm gas meter is available in size G6. The meter is characterized by precise measurements, a constant measuring stability, a long life and high reliability.

Solid build quality, high accuracy, safety and a series of advanced technical details make the diaphragm gas meter a high-grade measuring instrument. The Diaphragm gas meter is available in size G6. The meter is characterized by precise measurements, a constant measuring stability, a long life and high reliability. Thanks to the use of high-grade materials the diaphragm gas meter is resistant to corrosion.

The gas meter is suitable for various gas media. The integrated calibration system coordinates the movement of the valves in relation to the optimum gas flow. The excellent linearity of the error curve is guaranteed even at low flow rates. Due to the optimum rotating characteristics of the valves, the Qmin value remains stable and the gas meter is resistant to contamination.

Performance characteristics

Approved in accordance with MID by NMi
Integrated system to adjust the error curve
Die-cast aluminum housing for maximum corrosion resistance
Starting flow [lt] 1 dm³/h
Working temperature range: -25 °C to +55°C
Operating pressure: 1.5 bar
Long-term stability due to usage of high-quality diaphragms
Optional: reverse flow preventer

Product options

Measuring Principle

Diaphragm Gas Meters

Housing Material

Die-cast aluminum

Nominal Flow Q3 (≈ Qn)

Q3=6 (≈ Qn 3,5)

Max. Operating Pressure (bar)

1,5
