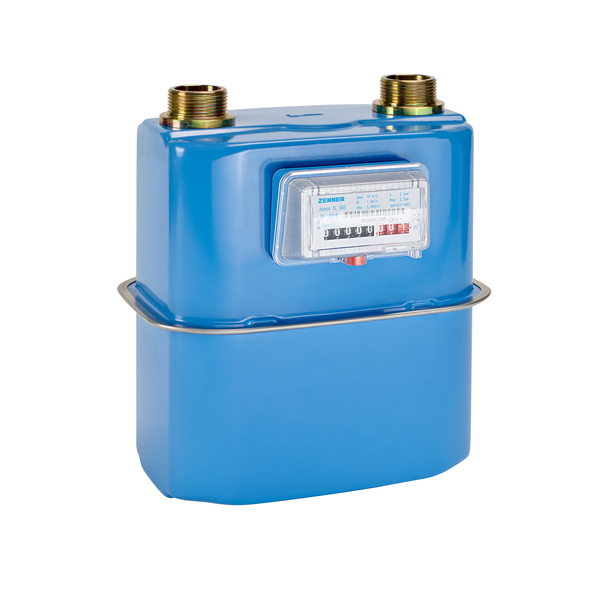

XL Industrial & Commercial diaphragm gas meters

General Information

The industrial diaphragm meter is one of our best-selling products.

The commercial gas meter is extremely suitable for the conditions of hotels, restaurants, factories and other commercial settings.

The meter is characterized by precise measurements, a constant measuring stability, a long life and high reliability. Thanks to the use of high-grade materials, the diaphragm gas meter is resistant to corrosion. The gas meter is suitable for various gas media.

The XL industrial [&] commercial Diaphragm gas meter meets the requirements of the EN1359:2017 and OIML R137-1 (2012) standards.

Performance characteristics

Integrated system to adjust the error curve
Approved in accordance with MID by NMi
Galvanized powder-coated steel housing for maximum corrosion resistance
Starting flow: G6 = 8 dm³/h; G10, G16 = 13 dm³/h; G25 = 20 dm³/h
Working temperature range: -25 °C to +55 °C
Operating pressure: 0.5 bar
Long-term stability due to usage of high-quality diaphragms
Retrofittable with pulser
Optional: reverse flow preventer

Product options

Measuring Principle

Diaphragm Gas Meters

Housing Material

Sheet Steel

Communication Technologies

Reed Pulser

Additional Options

Anti-Magnet-Protection

Max. Operating Pressure (bar)

0,5

Nominal Flow Qn
