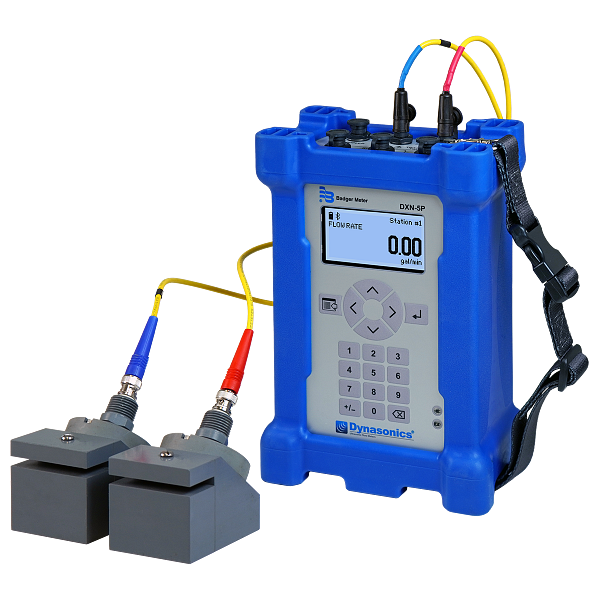

DXN-5P Portable Ultrasonic Flow Meter

General Information

The Dynasonics® DXN-5P Portable Hybrid Ultrasonic flow meter is a powerful tool used for troubleshooting flow issues, whether you want to quickly confirm the flow reading of another meter or to data log flow or thermal energy over an extended period.

Features

Optimize Performance. Identify leaking valves, airlocks, entrained air or sediment that may damage equipment or reduce efficiency.
Streamlined Installation. It can be installed and set up by a single individual by clamping the meter on the pipe—it does not require operations to be drained or shut down.
Extended Viewing Range. Connect over Bluetooth to monitor flow measurements on the SoloCUE® Flow Device Manager app while operating other equipment.

Features

Optimize Performance. Identify leaking valves, airlocks, entrained air or sediment that may damage equipment or reduce efficiency.
Streamlined Installation. It can be installed and set up by a single individual by clamping the meter on the pipe—it does not require operations to be drained or shut down.
Extended Viewing Range. Connect over Bluetooth to monitor flow measurements on the SoloCUE® Flow Device Manager app while operating other equipment.

Product options

Size Range

1/2...48 in.

Temperature Range

Flow Range

0.7...33,000 gpm

Accuracy

± 0.5% ±0.025 ft/s (0.008 m/s)

Repeatability

± 0.2%

Power Supply

9...28V DC | 20...26 AC | 85...265 AC

Interface

BACnet MS/TP, BACnet/IP, Modbus RTU, Modbus TCP, EtherNet/IP, BEACON/AquaCUE Connectivity
