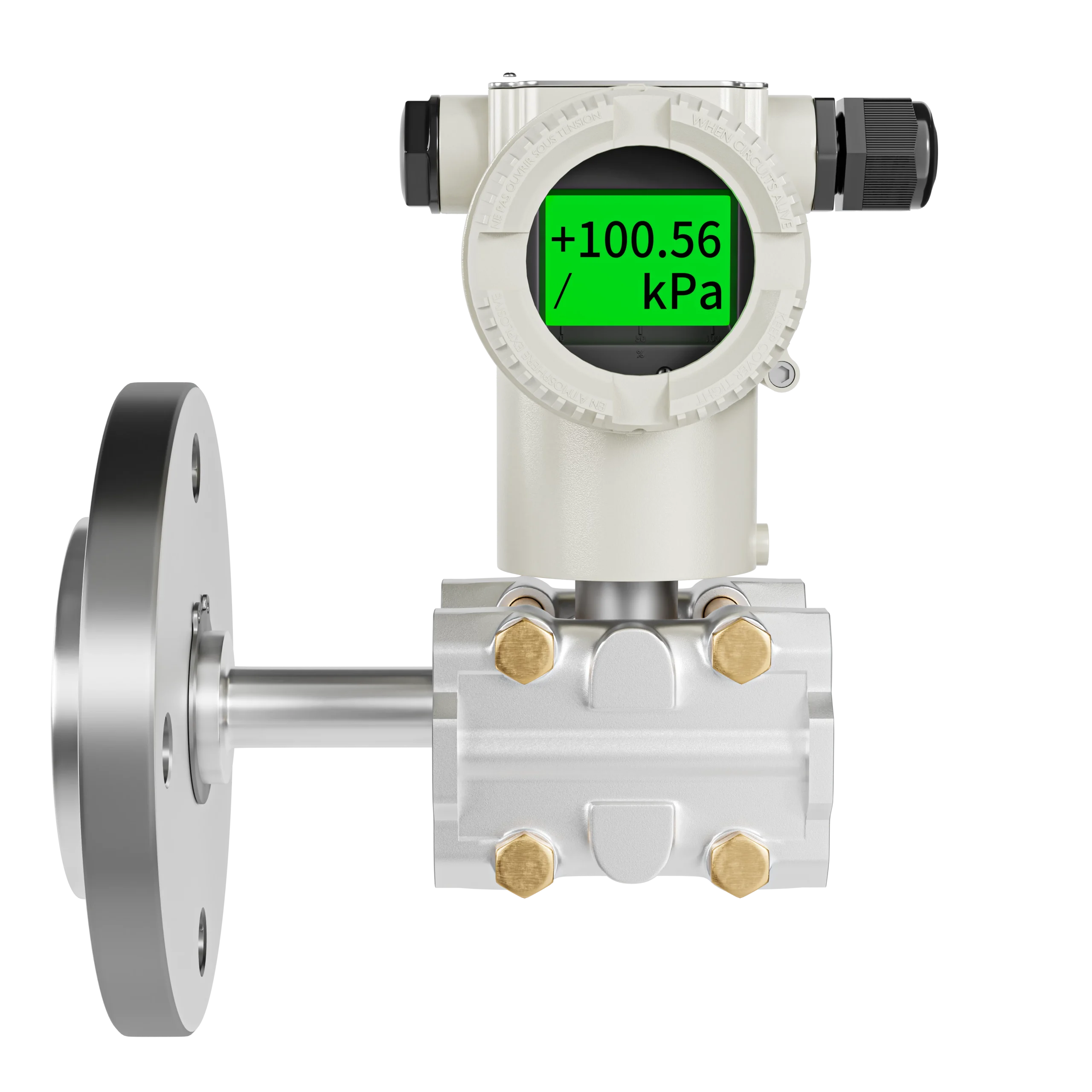

PD536 Flange mounted differential pressure transmitters

General Information

Specification Product Differential Pressure transmitter Model PD536 Measure range -100kPa··· 0~0.1kPa··· 3MPa Indication resolution ±0.075%; ±0.01%FS Ambient temperature -40 ~ 85 ℃

SPECIFICATION

Product

Differential Pressure transmitter

Model

PD536

Measure range

-100kPa··· 0~0.1kPa··· 3MPa

Indication resolution

±0.075%; ±0.01%FS

Ambient temperature

-40 ~ 85 ℃ (ultra-high temperature type to 600℃)

Medium temperature

-40~100℃

Storage temperature

-50~85℃

Output signal

4-20mA analog output / with HART communication

Shell protection

IP67

Diaphragm material

Stainless steel 316L, Hastelloy C, supports other custom

Product shell

Aluminum alloy, the appearance of epoxy coating

Weight

3.3Kg
