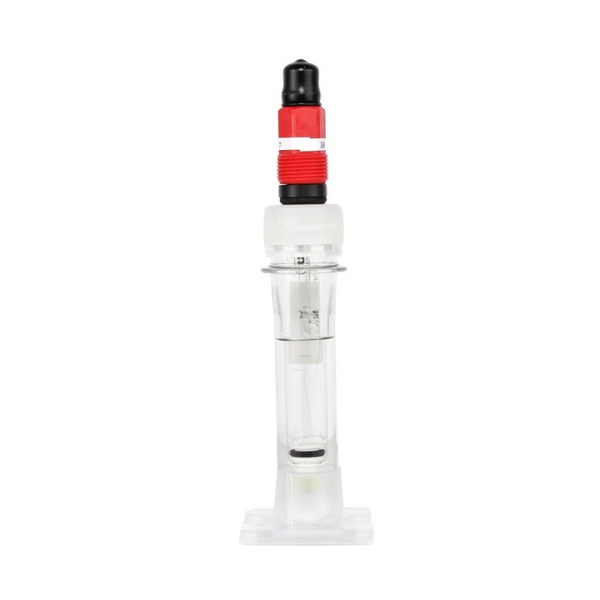

PH5022 Germany glass pH sensor

General Information

TecLine electrodes are high-quality sensors for professional applications in process and industrial measurement technology. These electrodes are known for their use of top-quality materials and components. They are designed as combined electrodes (the glass or metal electrode and the reference electrode are combined in one shaft). A temperature probe can also be integrated as an option, depending on the type.

Characteristics

Zero potential point: 7 ± 0.5 pH

Conversion coefficient: > 96%

Installation size: Pg13.5

Pressure: 1 ~ 6 Bar at 25 ℃

Temperature: 0 ~ 130℃ for general cables

SPECIFICATION

Product
Glass pH sensor
Model
SUP-PH5022
Measurement range
0 ~ 14 pH
Zero potential point
7 ± 0.5 pH
Slope
> 96%
Practical response time
< 1 min
Installation size
Pg13.5
Heat resistance
0 ~ 130℃
Pressure resistance
1 ~ 6 Bar
Connection
K8S connector
