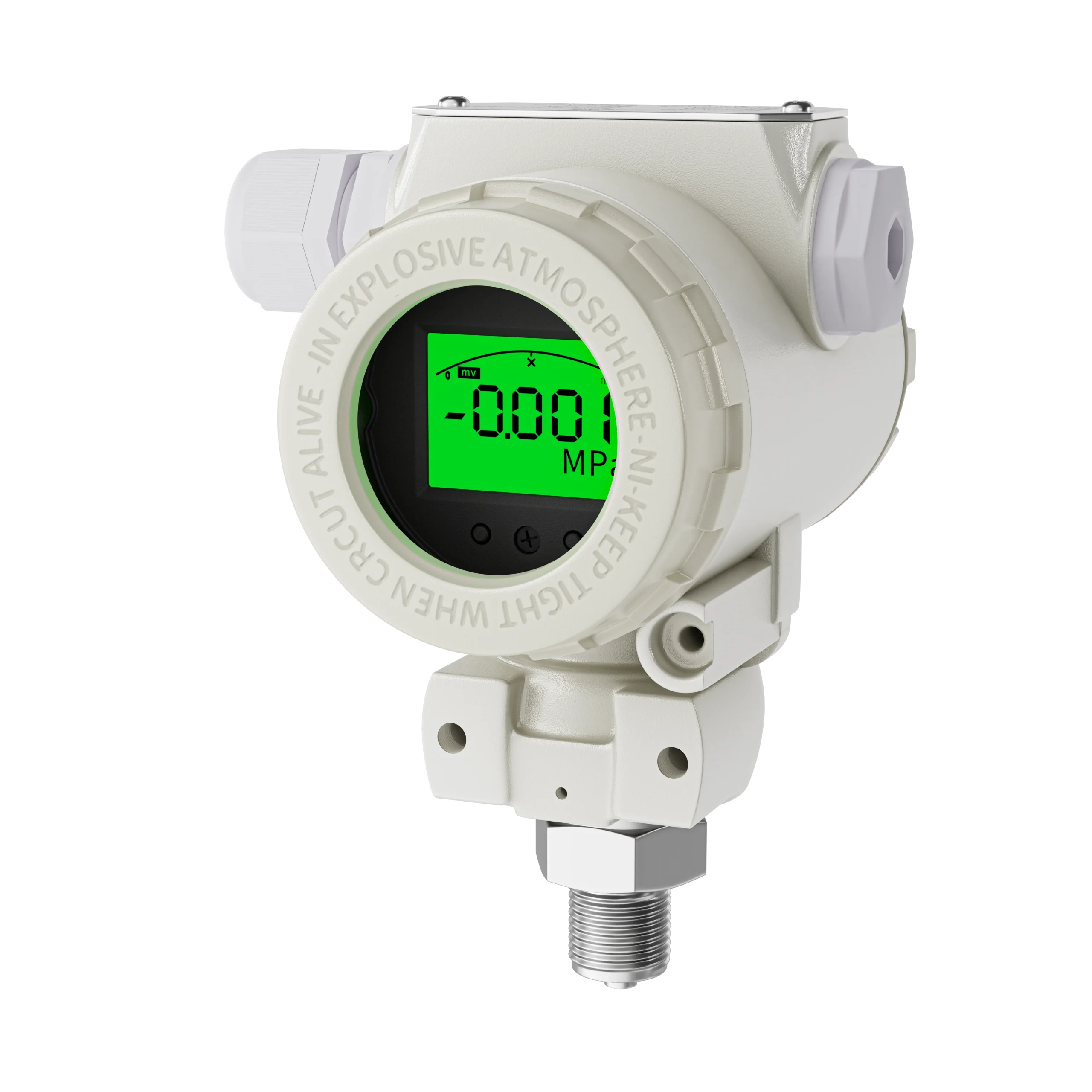

PM356 Pressure transmitter

General Information

PM356 Series pressure transmitter is kind of device based on pressure layer, which inside expert integrate circuit can transform sensor milli-volt signal to standard far distance transmission current signal, and it can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc. conveniently

SPECIFICATION

Power Supply

12V~32V ((4~20)mA with display
10V~32V ((4~20)mA+RS485,with display)
9V~32V ((4~20)mA,without display)

Output

(4-20)mA(1~5)V:(0-10)V:(0-~5)V:RS485

Accuracy

0.2%、0.25%、0.5%

Measurement range

-0.1.0.60pa

Pressure type

Gauge pressure,adiabatic pressure and sealed pressure

Compensation temperature

-10℃70℃

Working temperature

-20℃-85℃

Medium temperature

-20℃-85℃

Storage temperature

-40℃-85℃

Zero-point temperature drift

±0.3%FS/10℃

Sensitivity temperature drift

±0.3%FS/10℃

Overload pressure

(0.035-10)MPa(150%FS):(10~-60)MPa(125%FS)

Long-term stability

±0.2%FS/year

Response time

RS485 outputs100ms (up to 90%FS)
Current and Voltage outputs10ms (up to 90%FS)

Insulation

20M2/250VDC

Ingress protection

IP65

Load Resistance

(U-9V0/0.02A)
