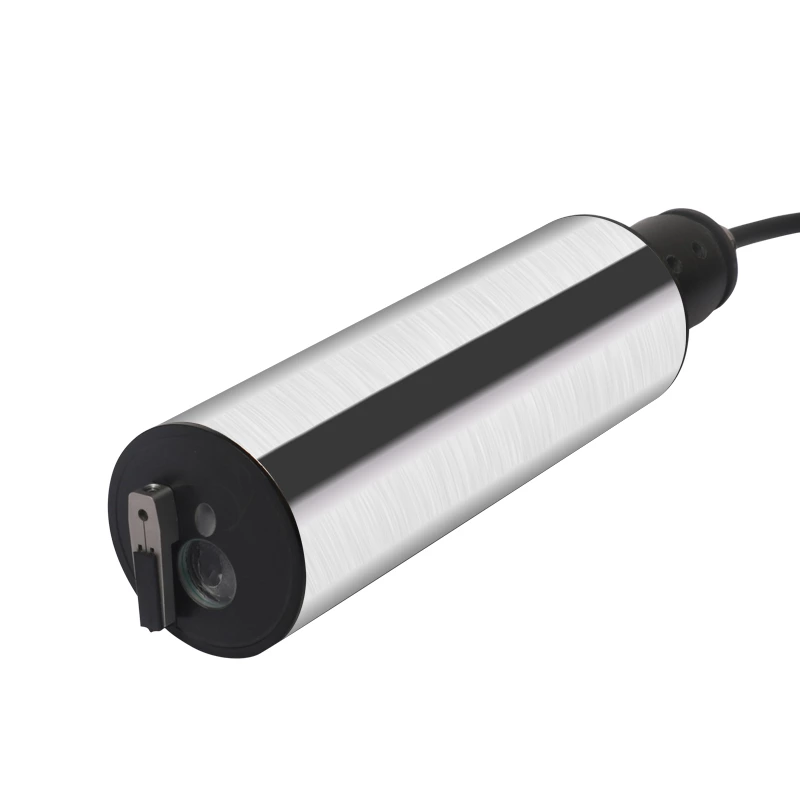

PTU8011 Turbidity Sensor

General Information

PTU-8011 turbidity meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.

Characteristics

Range: 0.01-100 NTU 、0.01-4000 NTU

Resolution: Less than ± 2% of the measured value

Pressure range: ≤0.4MPa

Environment temp: 0~45℃

SPECIFICATION

Product
Turbidity sensor
Model
PTU8011
Measure range
0.01-4000 NTU
Indication resolution
Less than ± 2% of the measured value,
or ± 0.1 NTU Maximax criterion
Pressure range
≤0.4 MPa
Flow velocity
≤2.5m/s, 8.2ft/s
Environment temp
0~45℃
Calibration
Sample Calibration, Slope Calibration
Cable length
Standard 10-Meter Cable, Max Length: 100 Meters
High voltage baffle
Aviation Connector, Cable Connector
Main materials
Main Body:SUS316L (Ordinary Version)
Titanium Alloy (Seawater Version)
Upper and Lower Cover: POM; Cable: PUR
Ingress protection
IP68/NEMA6P
Weight
1.65 KG
