Product

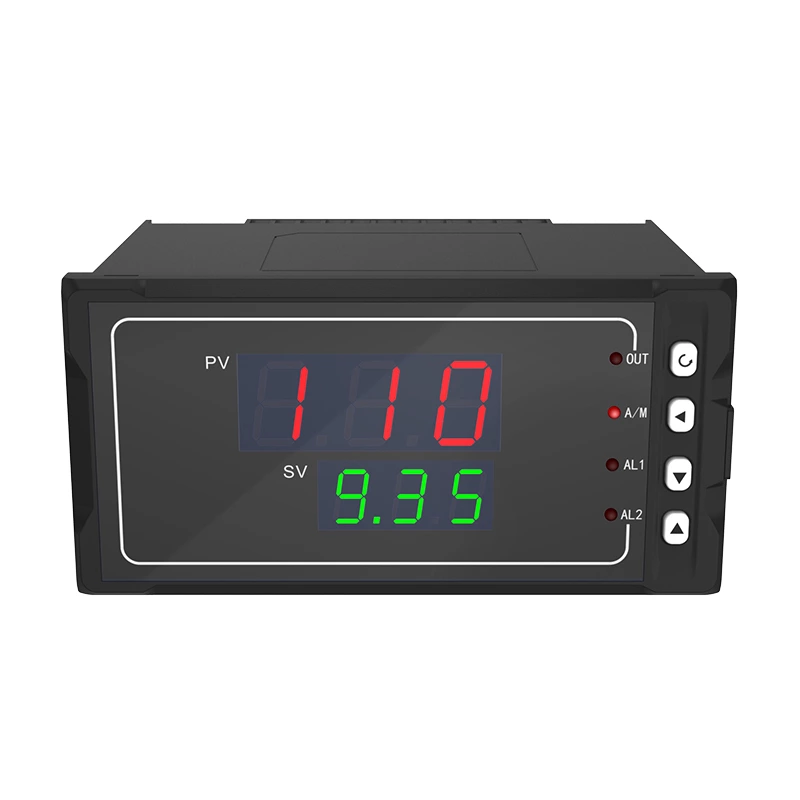

Digital Single-loop digital display controller
Model
110T
Display
Dual-screen LED display
Dimension
C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
H. 48*48*110mm
Measurement accuracy
±0.3%FS
Analog output
Analog output----4-20mA, 1-5V(RL≤500Ω), 1-5V (RL≥250kΩ)
Alarm Output
With upper and lower limit alarm function, with alarm return difference setting; Relay contact capacity：
AC125V/0.5A(small)DC24V/0.5A(small) (Resistance C load)
AC220V/2A(big)DC24V/2A(big) (Resistive load)
Note: When the load exceeds the relay contact capacity, please do not directly carry the load
Power supply
AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W
DC 12~36V Power consumption≤3W
Use environment
Operating temperature(0~50℃) Relative humidity: (5~85%)RH
