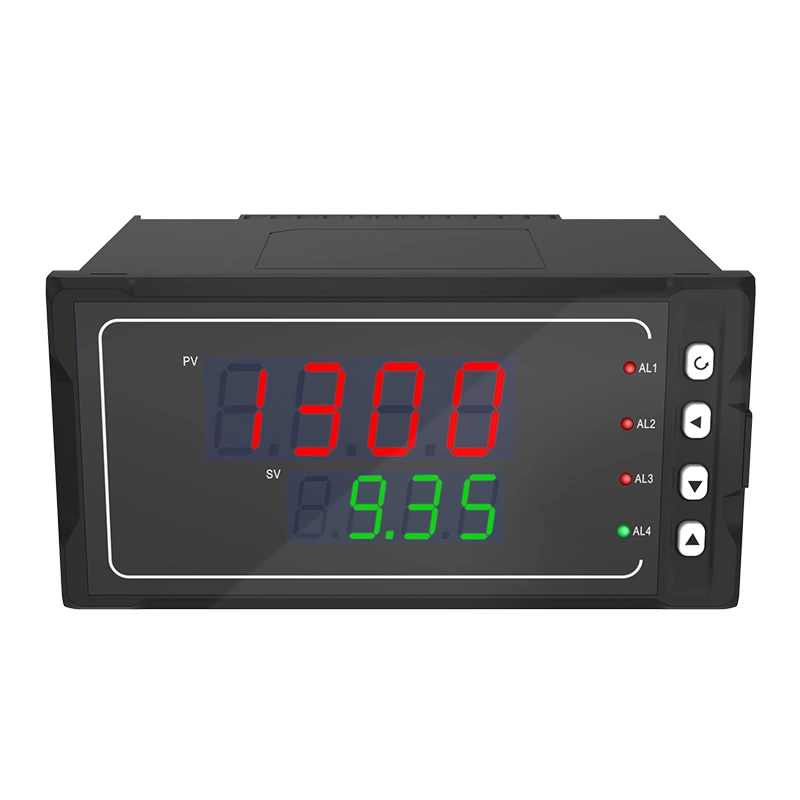

1300 Easy Fuzzy PID Regulator

General Information

1300 series easy fuzzy PID regulator adopts fuzzy PID formula for easy operation with measurement precision of 0.3%; 7 types of dimensions available, 33 types of signal input available; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc.

SPECIFICATION

Product

Easy Fuzzy PID Regulator

Model

1300

Display

Dual-screen LED display

Dimension

A. 16080110mm
B. 80160110mm
C. 9696110mm
D. 9648110mm
E. 4896110mm
F. 7272110mm
H. 4848110mm

Measurement accuracy

±0.3%FS

Transmission output

Analog output----4-20mA、1-5v、
0-10mA、0-5V、0-20mA、0-10V

Alarm Output

With upper and lower limit alarm function, with alarm return difference setting；capacity：
AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load）
AC220V/2A(big)DC24V/2A(big)（Resistive load）
Note: When the load exceeds the relay contact capacity, please do not directly carry the load

Power supply

AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W
DC12~36V Power consumption≤3W

Use environment

Operating temperature（-10~50℃）No condensation, no icing
