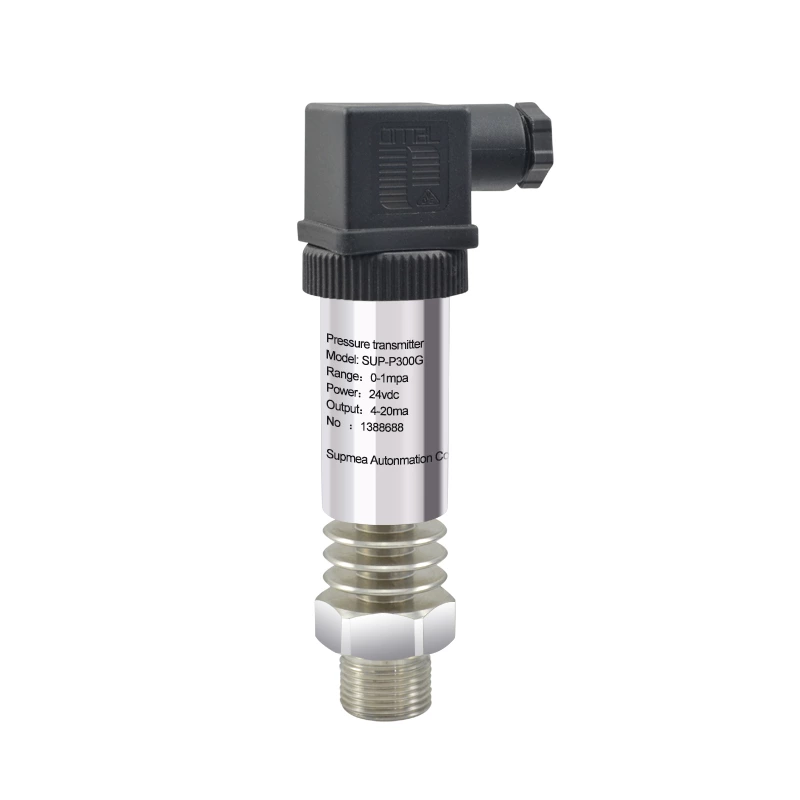

SUP-P300G High temperature pressure transmitter

General Information

SUP-P300G is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output.

A high-temperature pressure transmitter is a specialized device used to measure and transmit pressure readings in applications where the temperature is significantly elevated. These transmitters are designed to withstand and function reliably under extreme temperature conditions, ensuring accurate pressure measurements even in harsh environments.

SPECIFICATION

Product

High temperature Pressure transmitter

Model

SUP-P300G

Measuring range

-0.1…0/0.01…60Mpa

Display resolution

0.5%

Medium temperature

-50-250°C

Working temperature

-20-85°C

Output signal

4-20mA Analog output

Pressure type

Gauge pressure, adiabatic pressure and sealed pressure

Measure medium

Liquid; Gas; Oil etc.

Pressure overload

0.035...10MPa (150%FS)10...60MPa (125%FS)

Power supply

10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)
