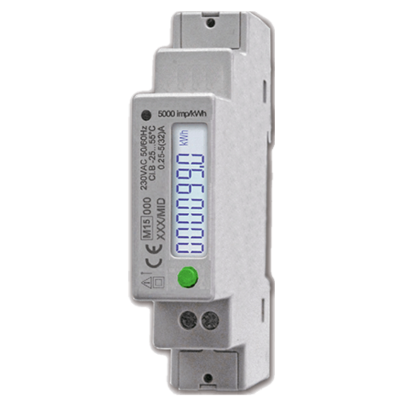

1Ph. kWh-meter
General Information
Made in Switzerland
Single-phase kWh-meter to measure active energy (kWh) consumption.
Features
- Single-phase kWh-meter, 230V, 32A
- Accuracy class B (1%), MID B + D and CE approved
- S0 pulse-output 1000 imp./kWh
- M-Bus interface according EN13757-2,-3 (option)
Technical specifications
Operating voltage:
230V +/-20%
Nominal frequency:
50 Hz, 60 Hz
Working frequency:
40 – 65 Hz
S0 pulse output:
- EN62053-31
- potential free
- max. 27VDC
- 1000 Imp./kWh, 100ms
M-Bus:
- According to EN13757-2, -3
- M-Bus load: 1.5mA
- 300-9600 baud
- No battery needed
Data retention:
Up Flash or EEPROM, min. 10 years
Casing:
Polycarbonate, halogen-free, recyclable
Degree of protection:
IP20 / IP51
Weight
ca. 350g
Protection class
II
Temperature range
- Operating: -25°C - +55°C
- Storage: -40°C - +70°C
