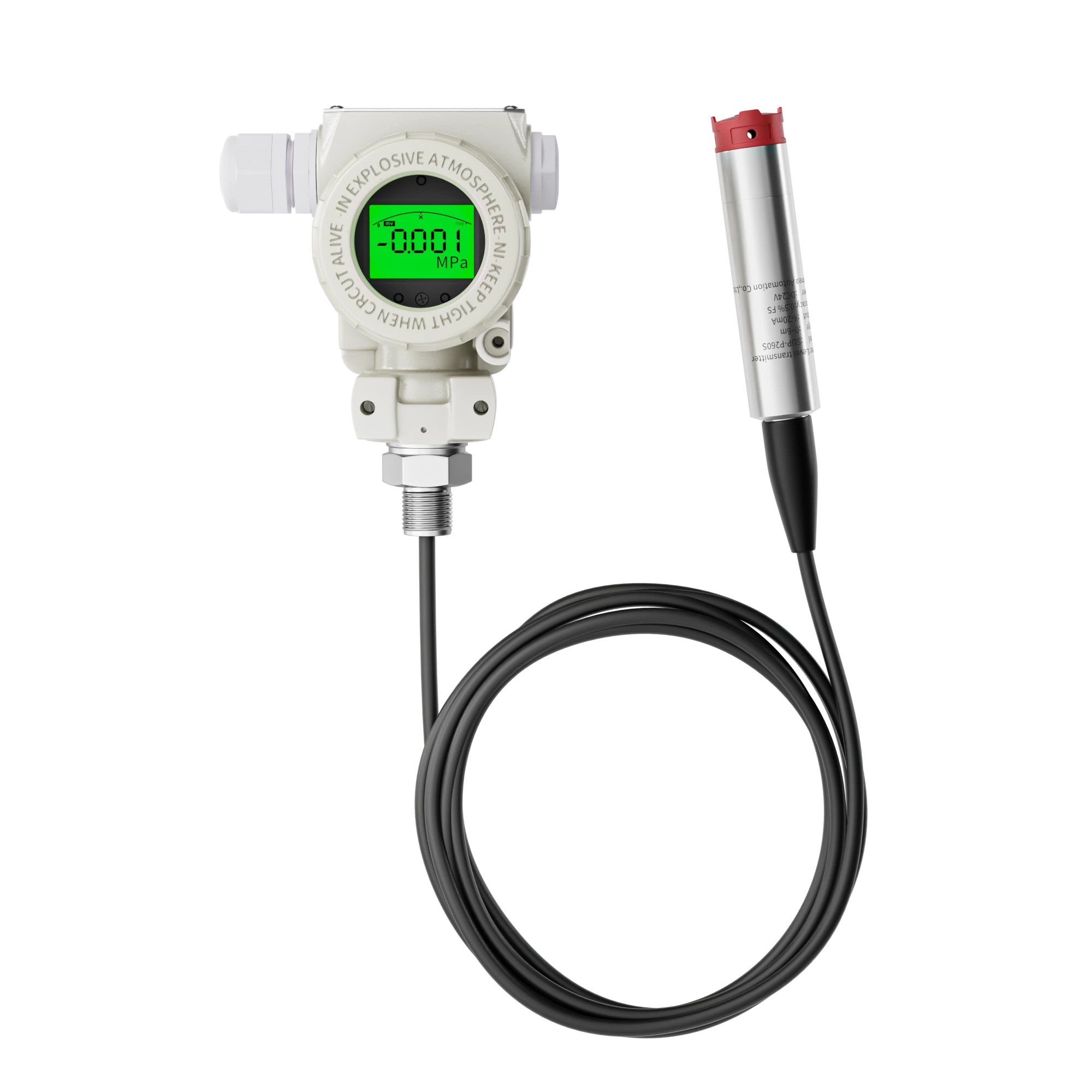

SUP-WSP506 Submersible level meter

General Information

Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shaking on the measurement stability

Multiple waterproof and dustproof.

With display function, support on-site liquid level data monitoring without supporting liquid level detector.

SPECIFICATION

Product

Level transmitter

Model

SUP-WSP506

Measure range

0 ~ 1m; 0 ~ 3m; 0 ~ 5m; 0 ~ 10m （Max 100m）

Indication resolution

0.5%

Ambient temperature

-10 ~ 85 ℃

Output signal

4-20mA

Pressure overload

150%FS

Power supply

24VDC; 12VDC; Custom (9-32V)

Medium temperature

-40 ℃ ~ 60 ℃

Overall material

Core: 316L; Shell: 304 material
